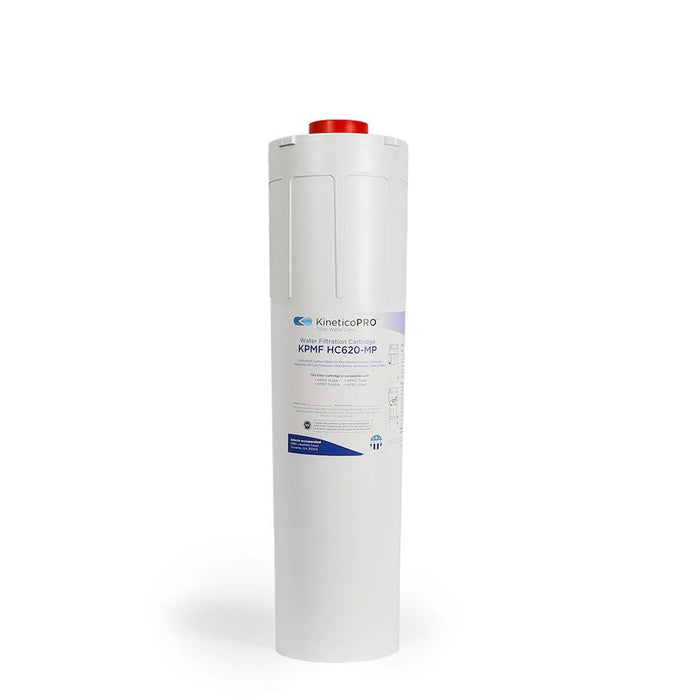

Description:

The KineticoPRO KPMF HC620-MP is the highest-capacity cartridge in the NanoSmart™ Series, purpose-built for high-volume commercial foodservice operations including large quick-service restaurants, stadiums, hotels, hospitals, and multi-station beverage setups handling 1 to 2 carbonators. With a chlorine capacity of 100,000 gallons at 8 GPM flow rate, the HC620-MP delivers the longest filter life in the NanoSmart lineup — minimizing service intervals while keeping ingredient water quality consistently exceptional.

The HC620-MP uses a dual-stage approach combining electro-adsorptive pleated media with ultra-porous, binder-free hollow carbon to reduce chlorine, chloramines, bacteria, cysts, pathogens, trace pharmaceuticals, particulates, and other dissolved contaminants. At 1 micron filtration with Turbo Flow technology for even water distribution, it delivers exceptional flow with minimal pressure drop — keeping your equipment running efficiently and your guests satisfied.

The HC620-MP leads the NanoSmart Series in chloramine reduction, handling 20,000 gallons at 1.7 GPM — nearly four times the chloramine capacity of the HC614-MP — making it the definitive choice for high-demand locations in municipalities with chloramine-treated water. It is also certified by NSF to Standard 401 for microplastic reduction, removing small plastic particles from packaging, clothing, and microbeads that standard filters miss entirely.

Compatible with KPRO Single, Double, Triple, and Quad manifold systems (single manifold part #KP-300-777), the modular design supports easy capacity expansion as your operation grows. The sanitary quick-change cartridge requires no contact with filter media during replacement, keeping changeouts fast, clean, and tool-free.

Key Specs:

• Alt. Part #: 108-020NS
• Capacity: 100,000 gal @ 8 GPM
• Chloramine Capacity: 20,000 gal @ 1.7 GPM
• Micron Rating: 1
• Pressure: 40–100 PSI
• Temp: 40°–100°F
• Inlet/Outlet: 3/4" FNPT
• Shipping Weight: 17 lb
• NSF/ANSI Certified: Standards 42, 53 & 401 (Microplastics)
• Compatible Manifold: KP-300-777
